Technical data
| Function | contact on the ribs, height adjustment |
| Versions | short and long; extra long for 4/4 and viola only |
| Thread lengths | 15 / 22 / 33 mm (manufacturer data) |
| Sizes | Mini, junior, 4/4 and viola |
| Also available | brass adjusting screw KUN-512 for the Super |
Features
- 4/4 and viola come as foot and screw set, mini and junior as screw
- Fits all full size and viola Kun models

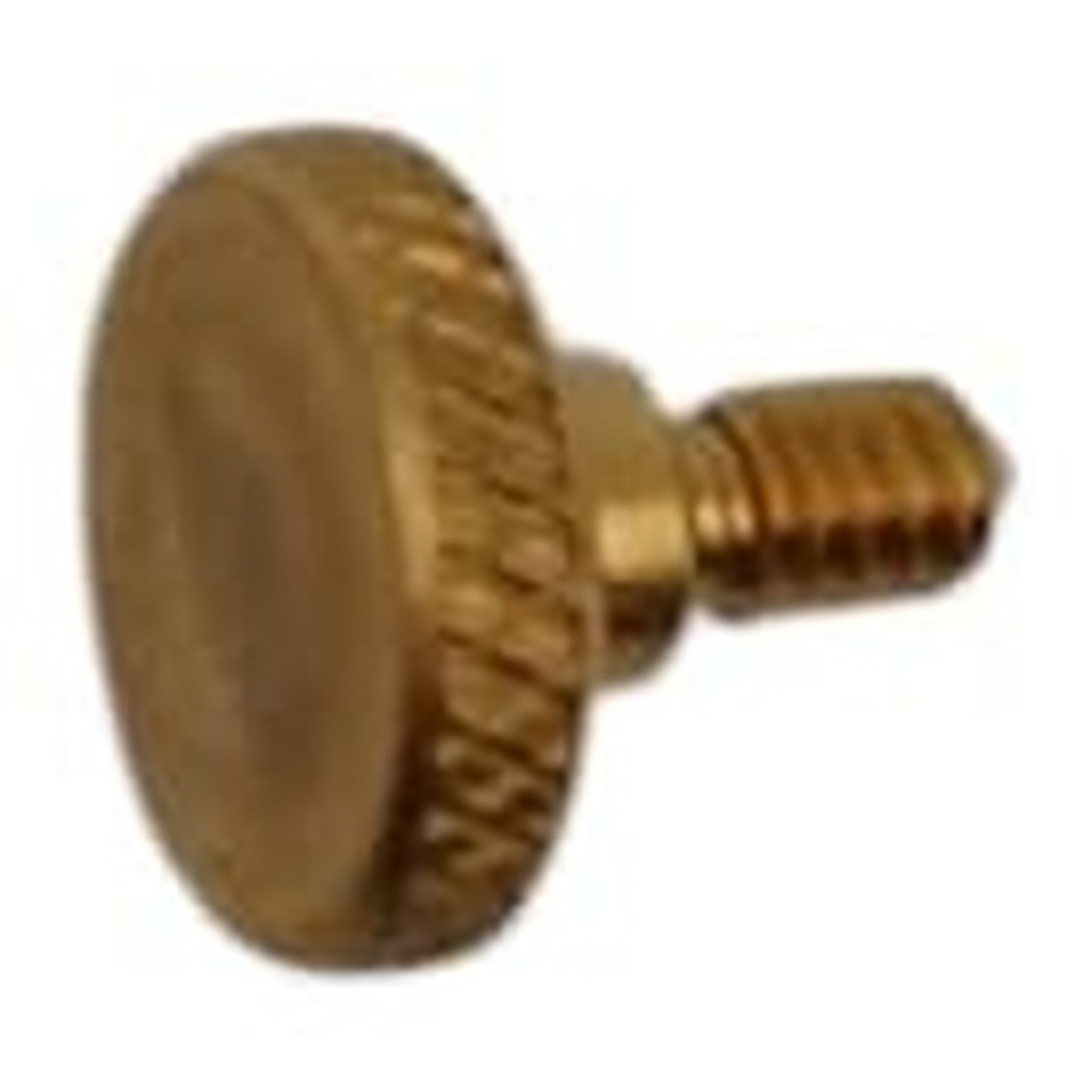

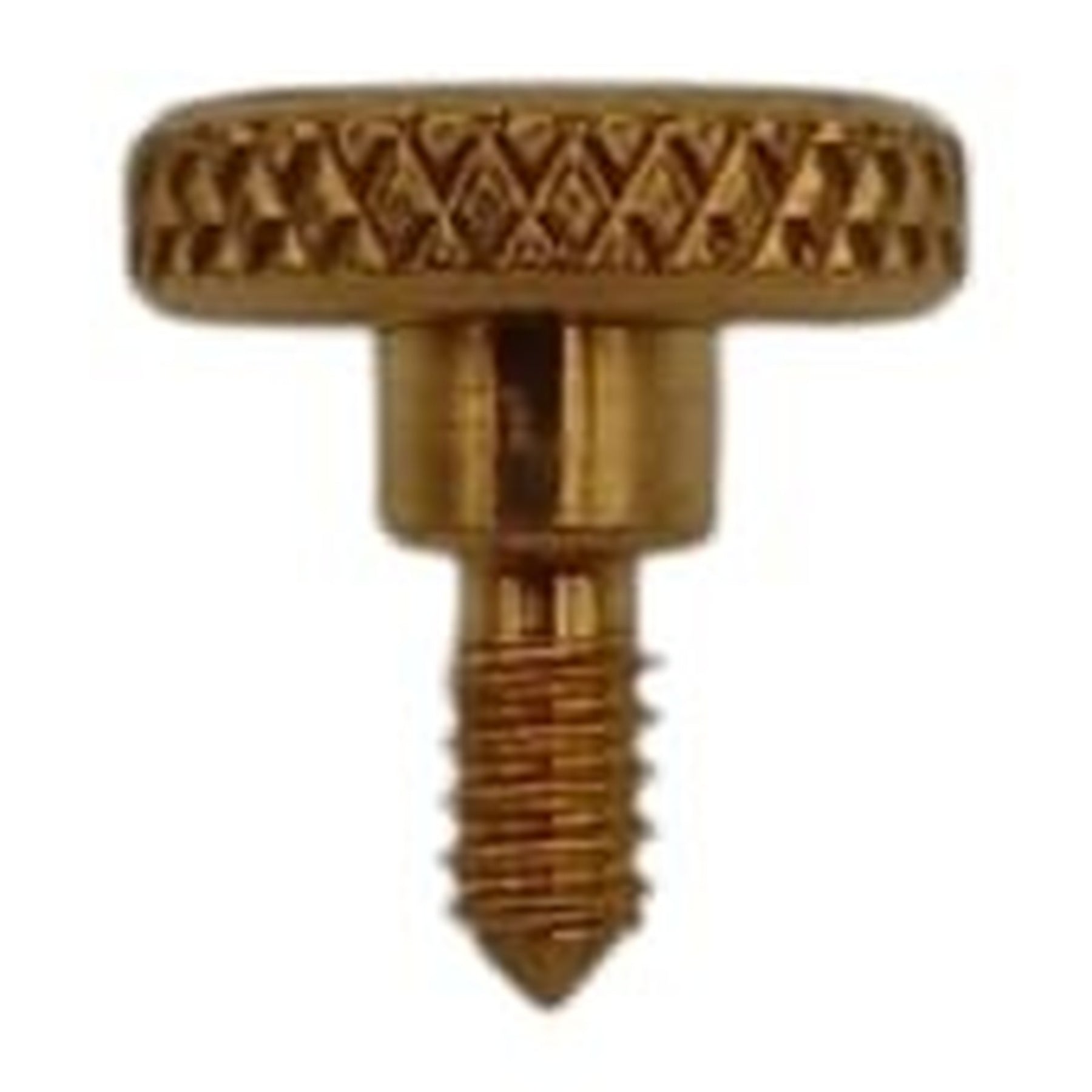

The brass adjusting screw KUN-512 for the Super range is also available. When fitting, keep the shaft straight and work slowly so the thread engages cleanly.
Construction and spare parts

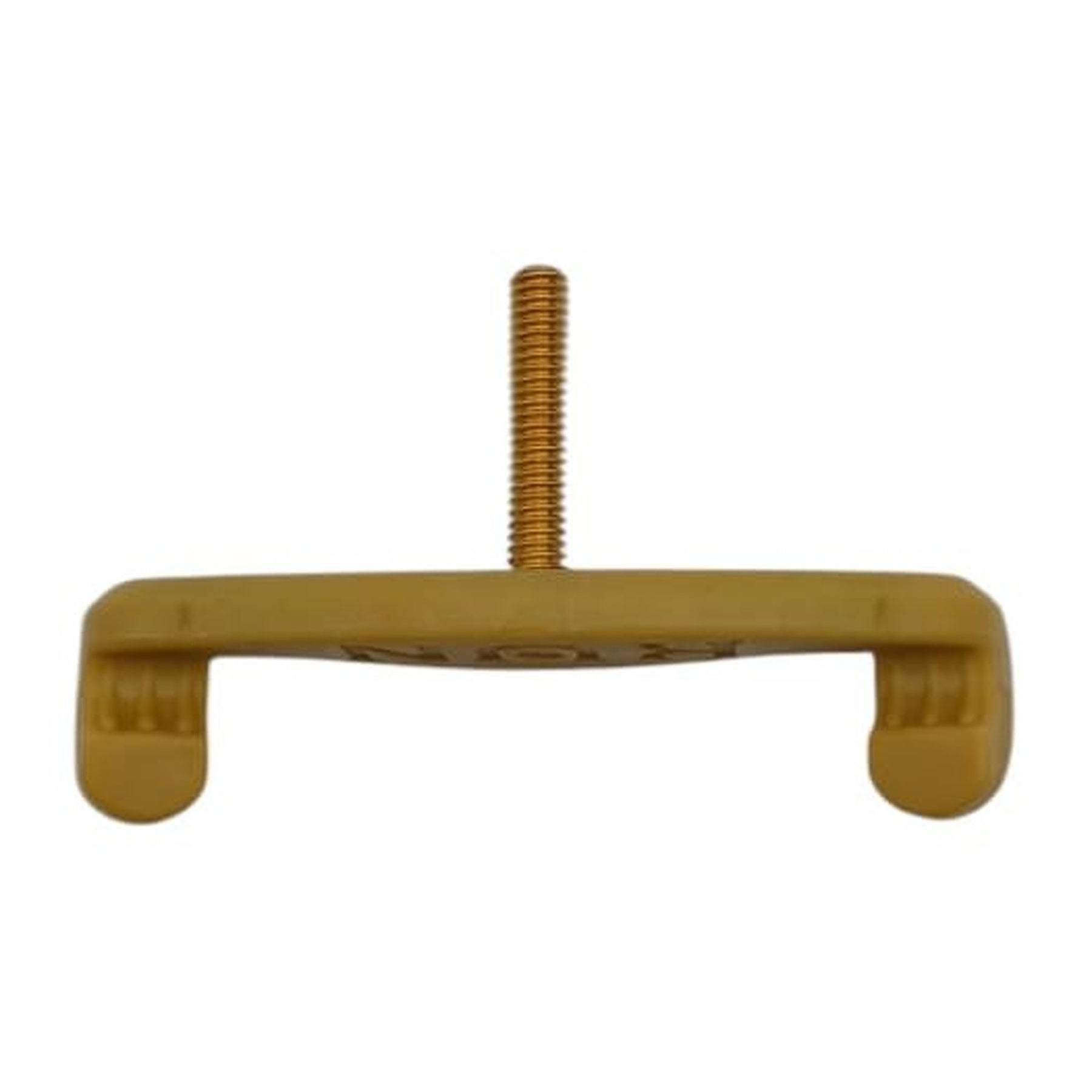

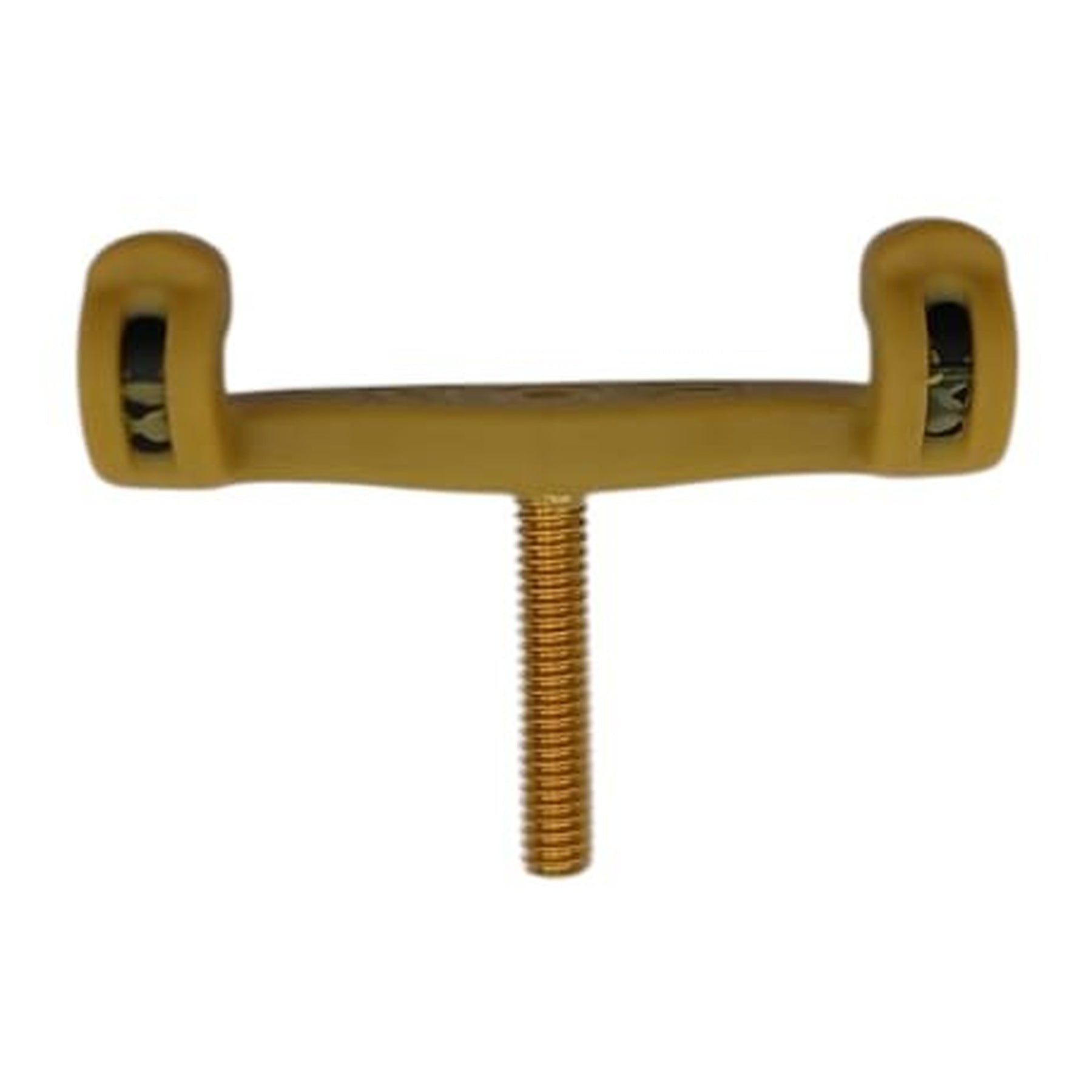

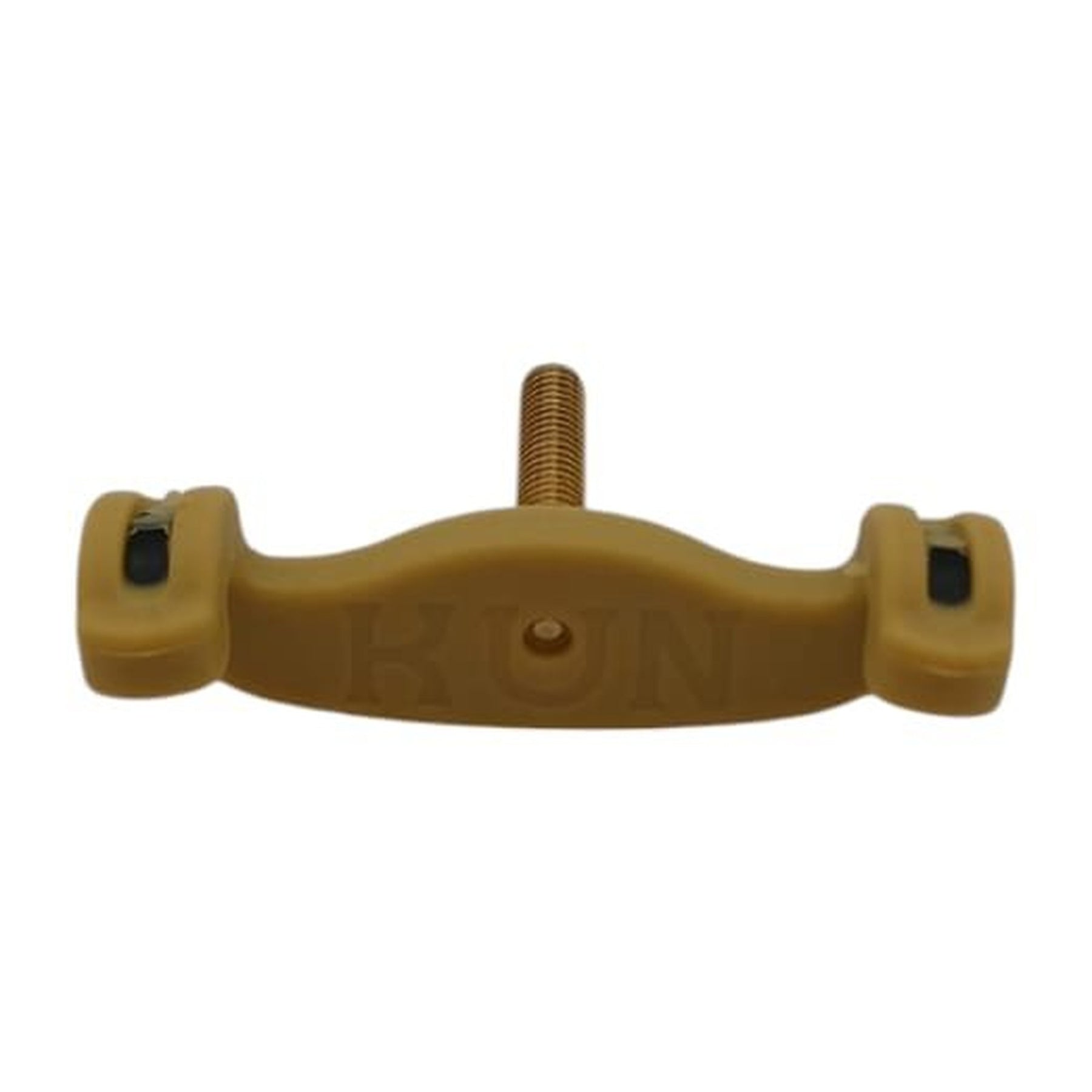

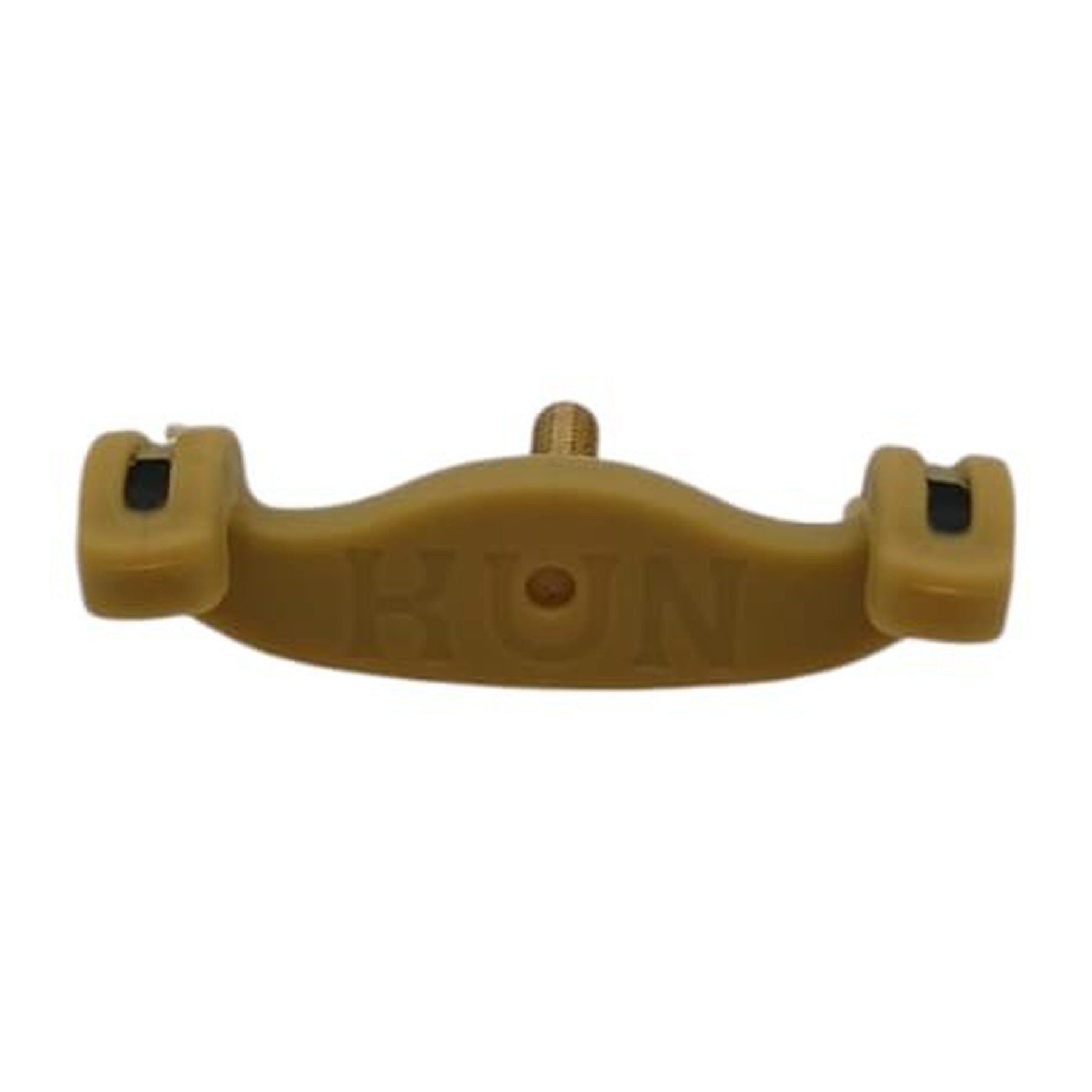

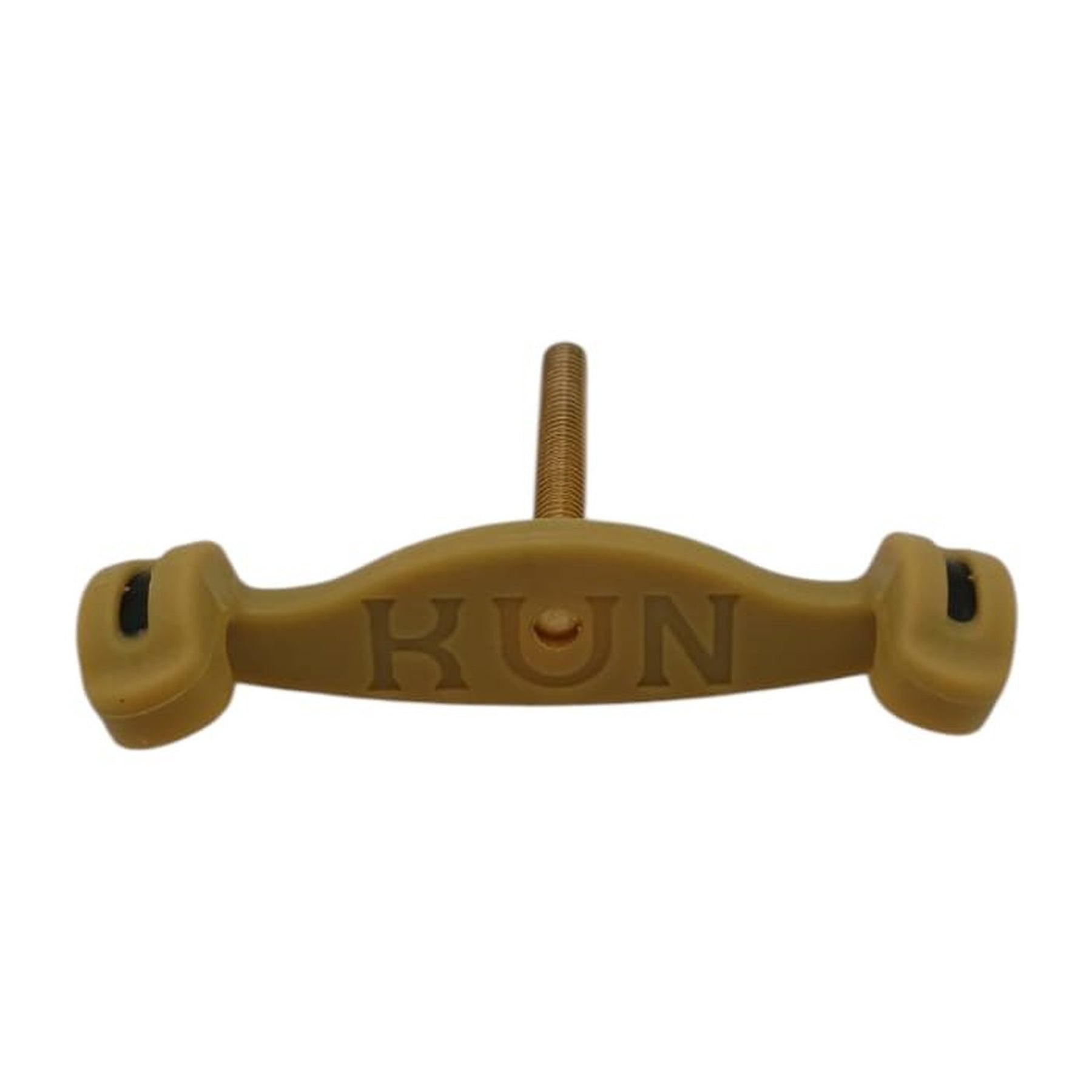

A Kun rest consists of a few parts that can each be renewed: the end members with their drums, the nut, the feet with their threaded screws and the rubber cover.

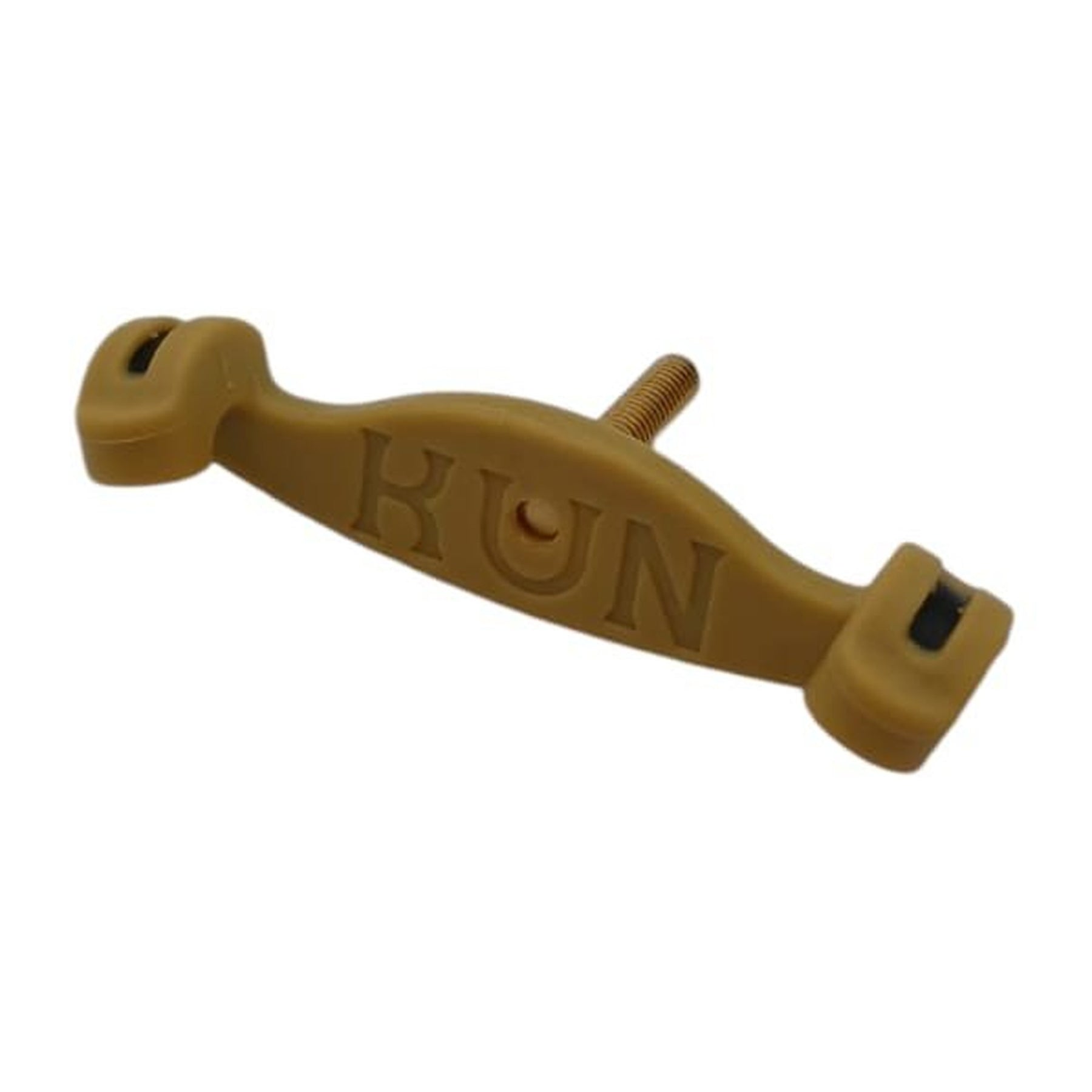

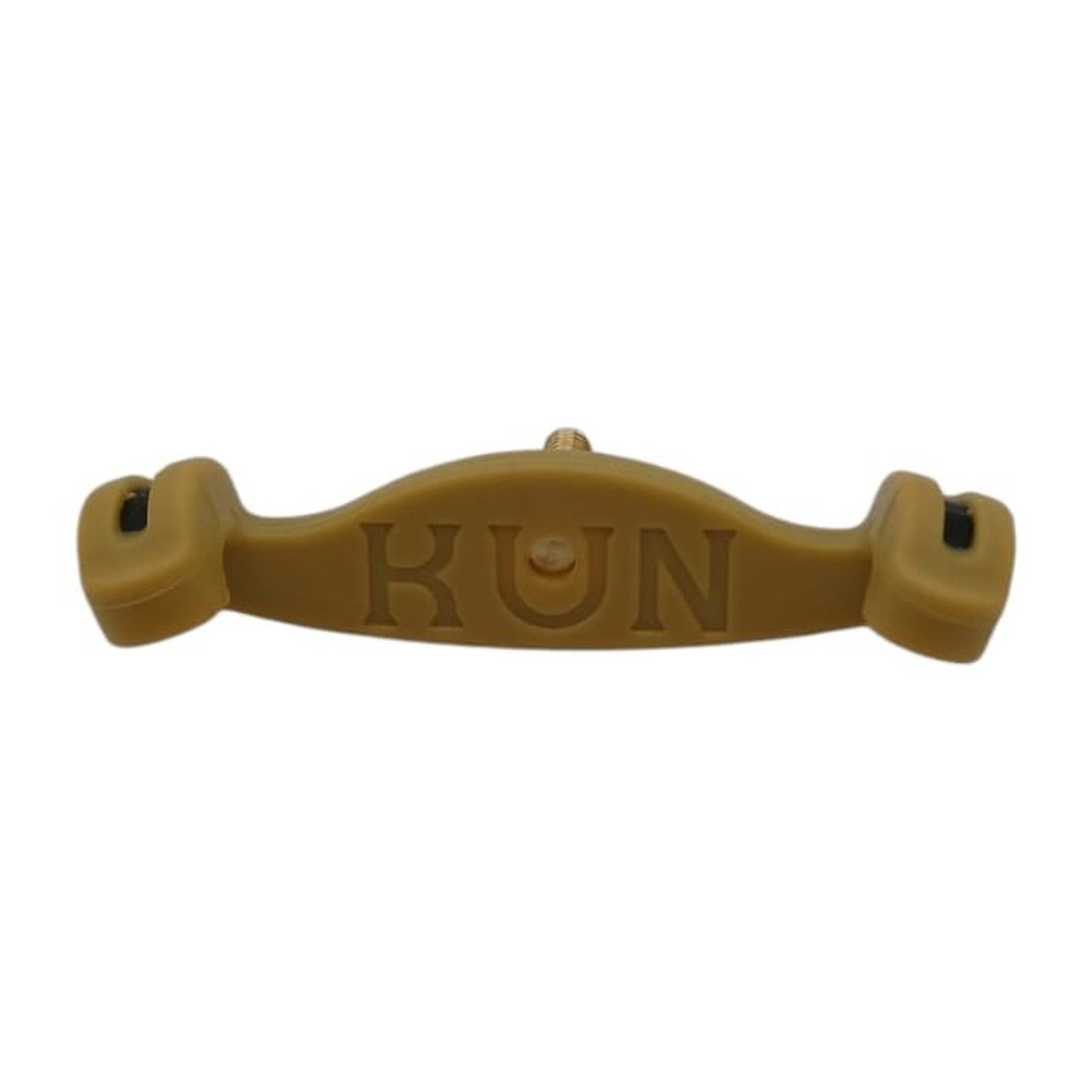

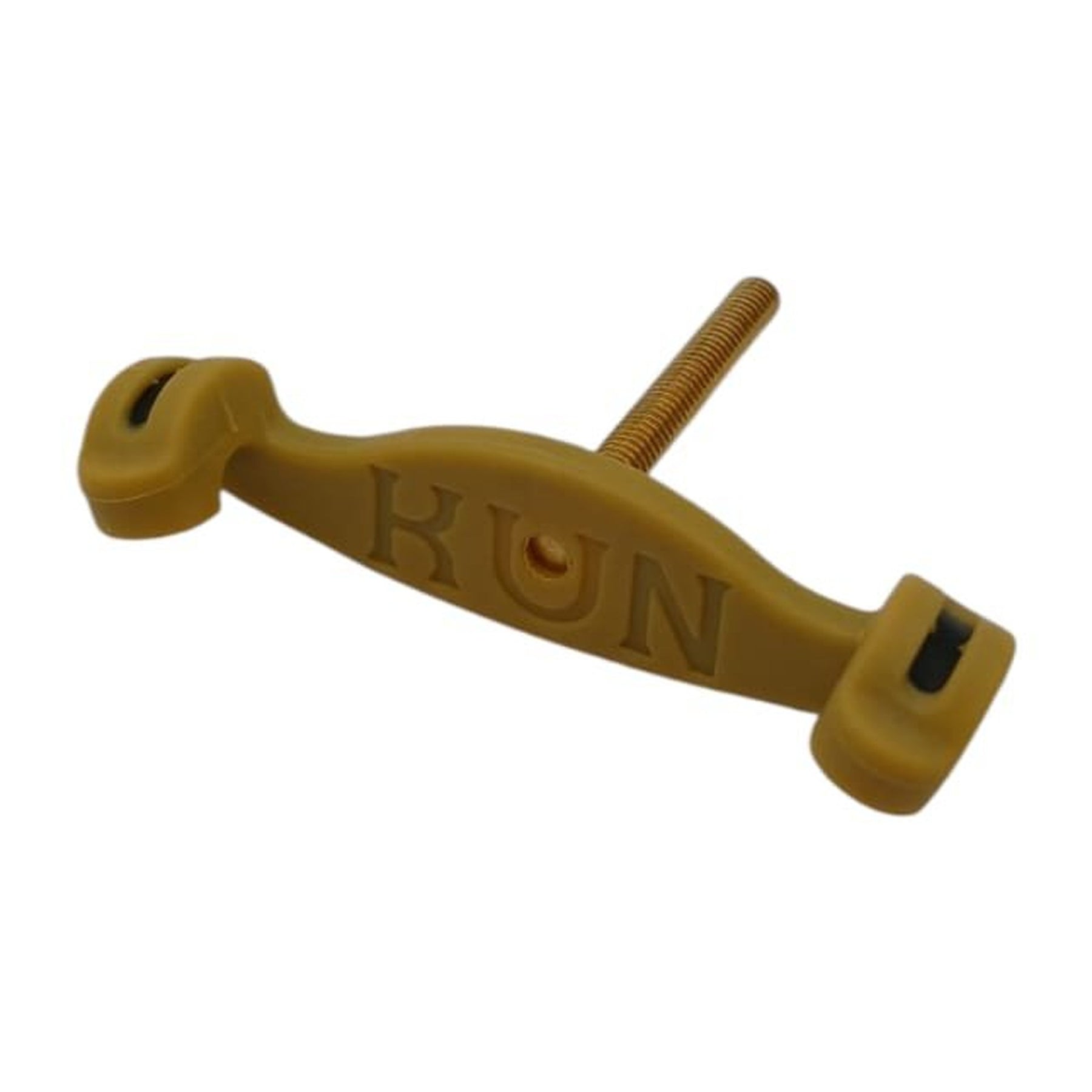

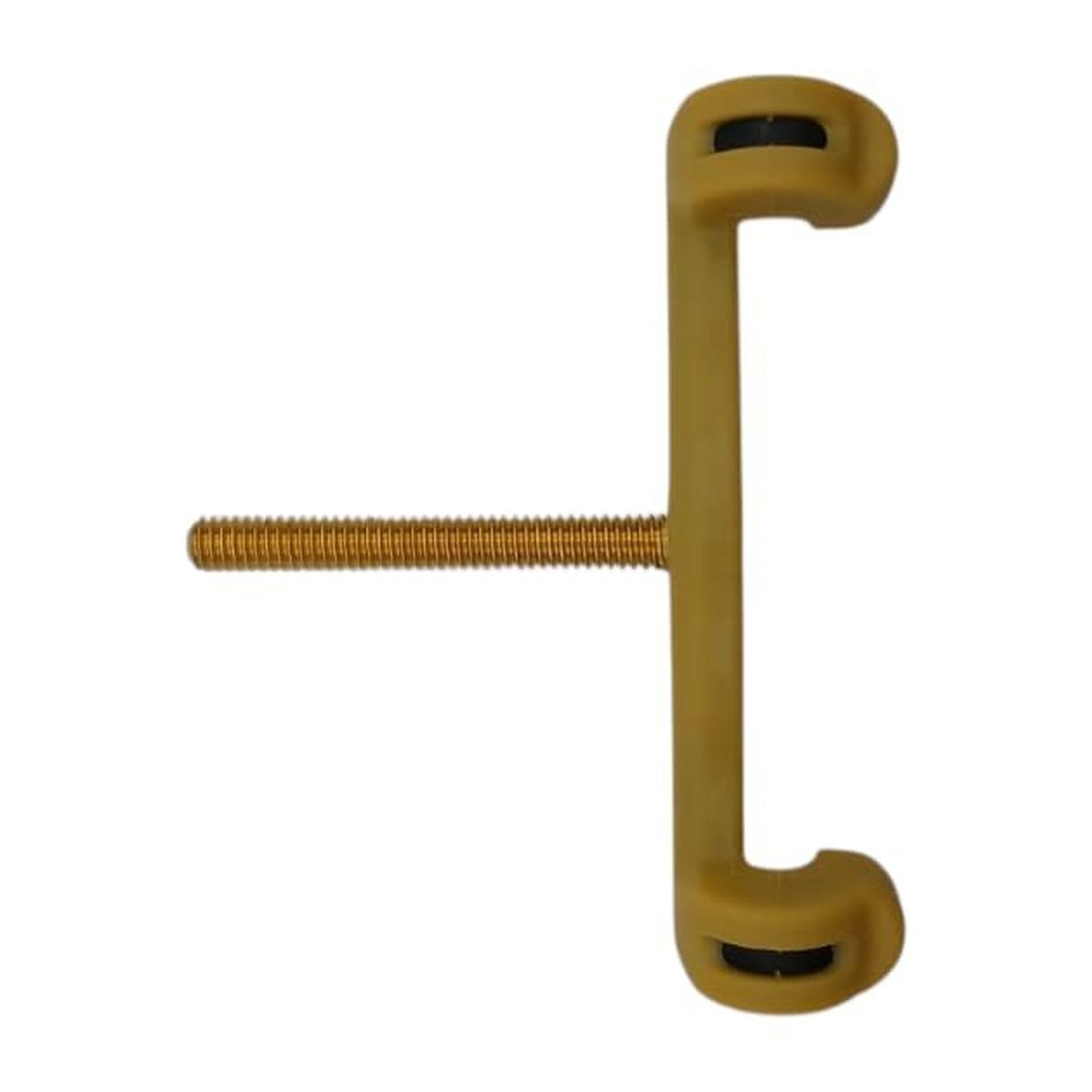

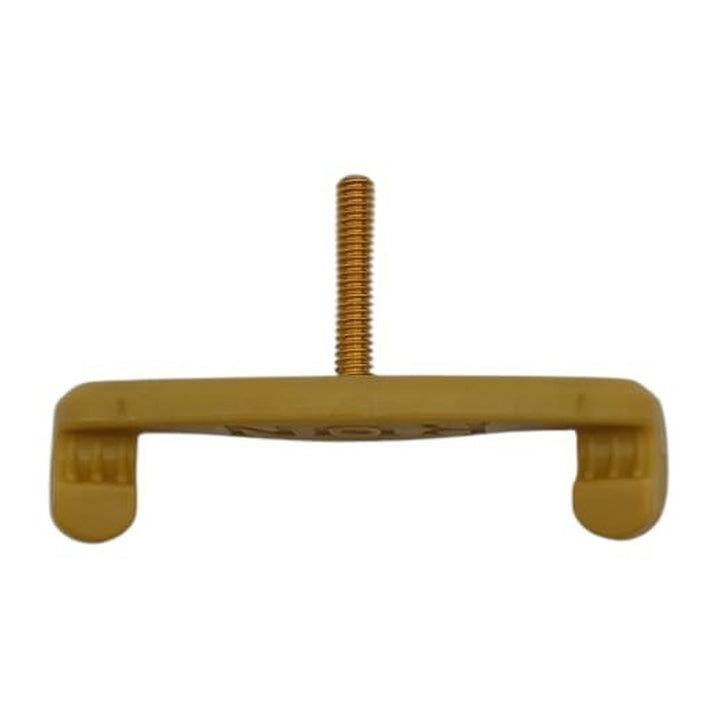

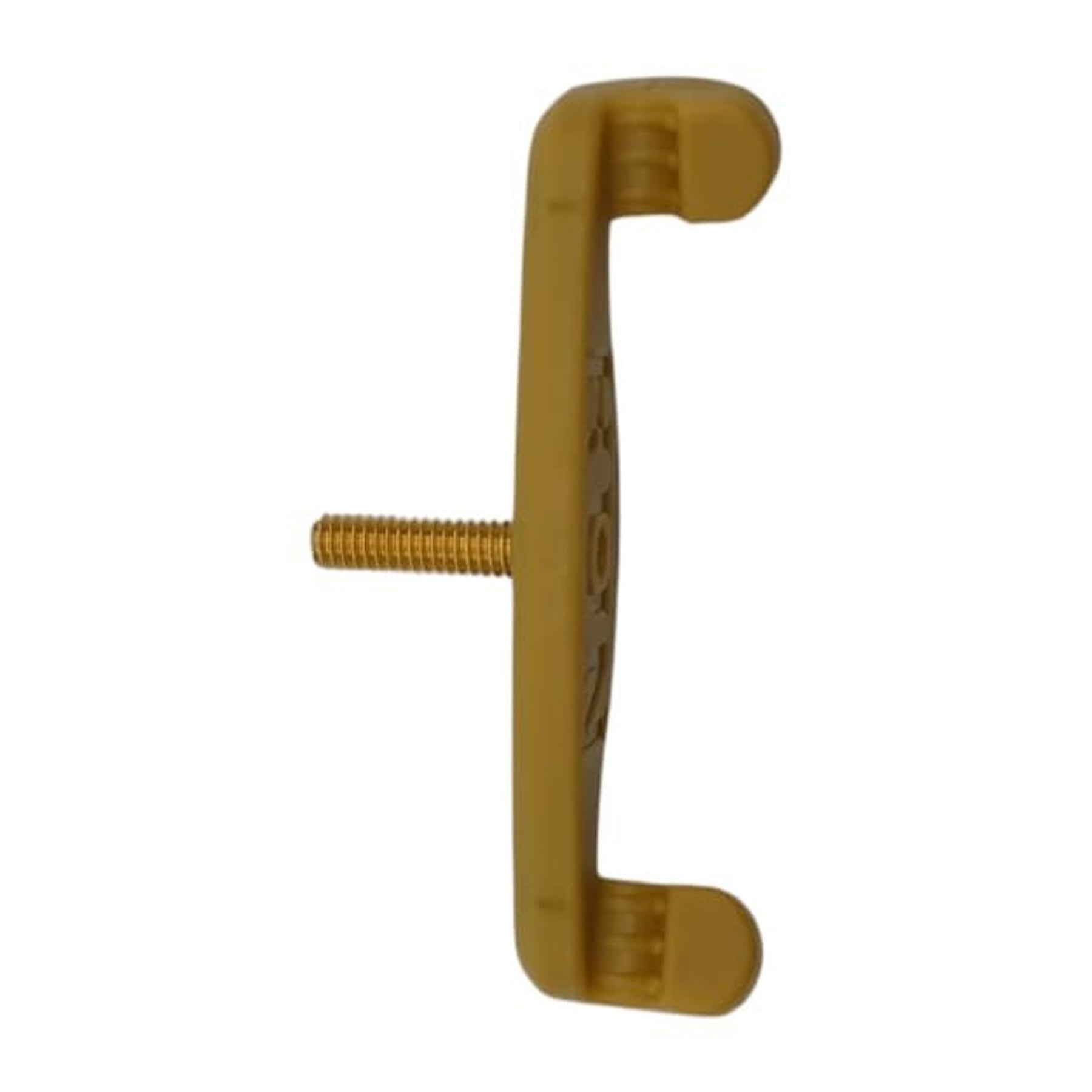

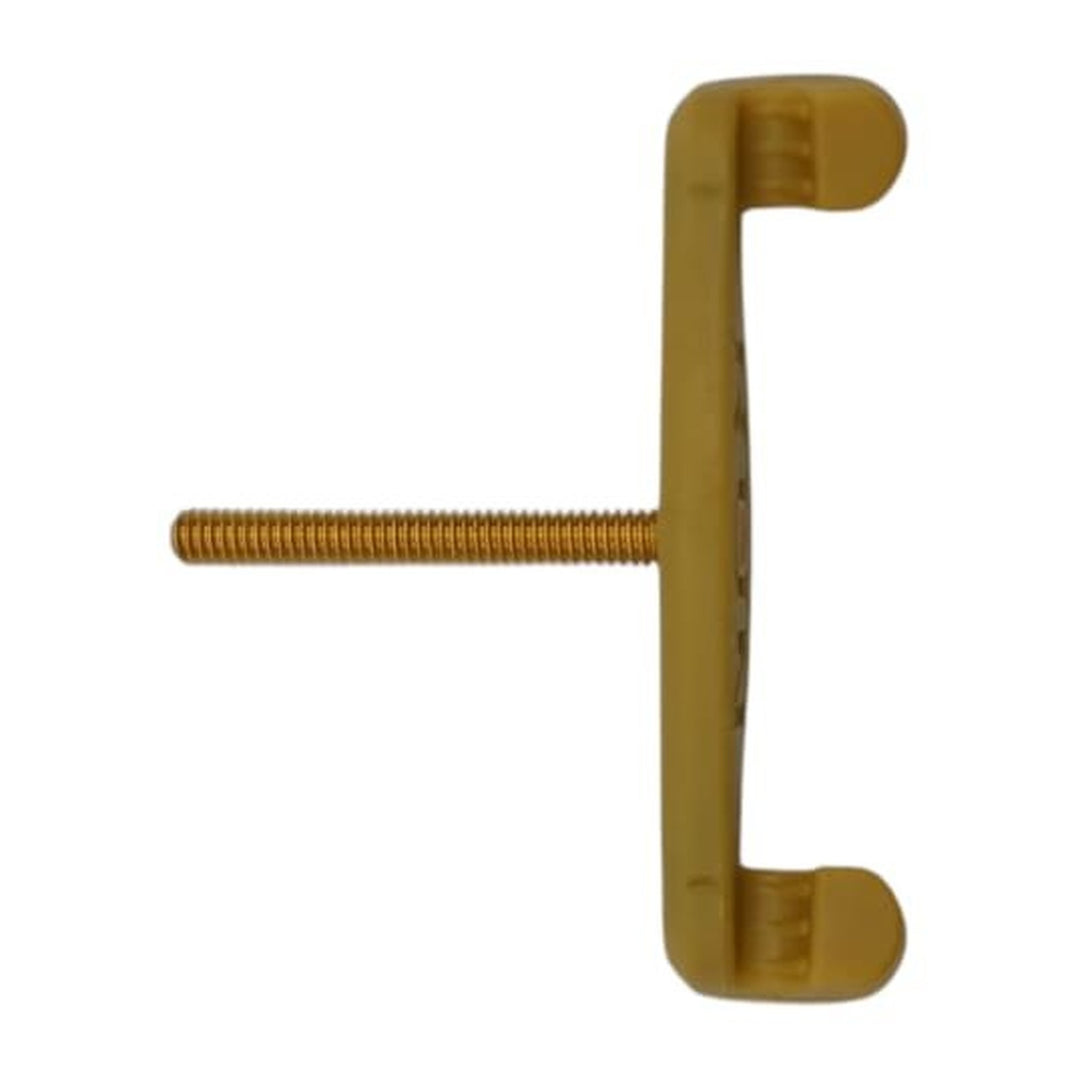

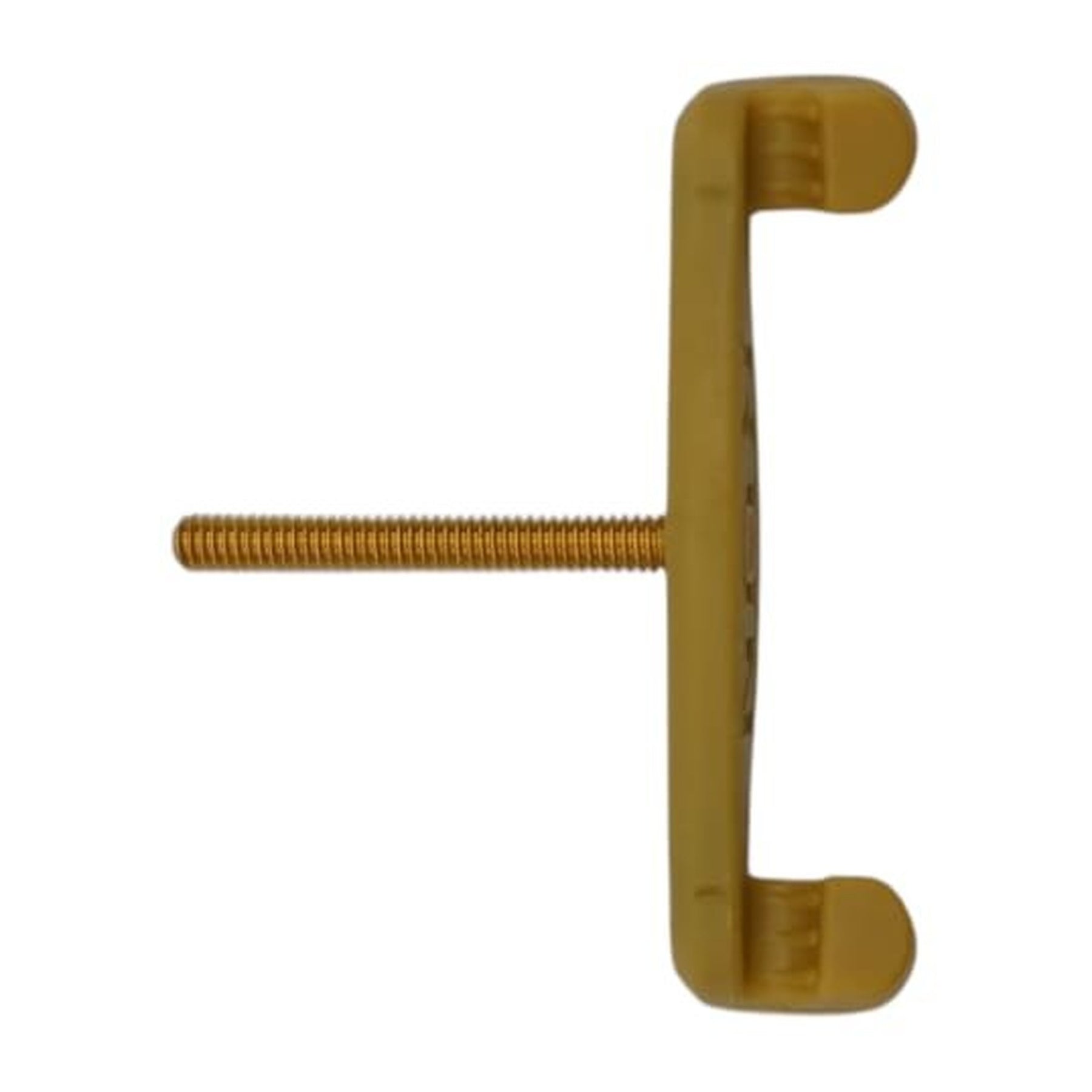

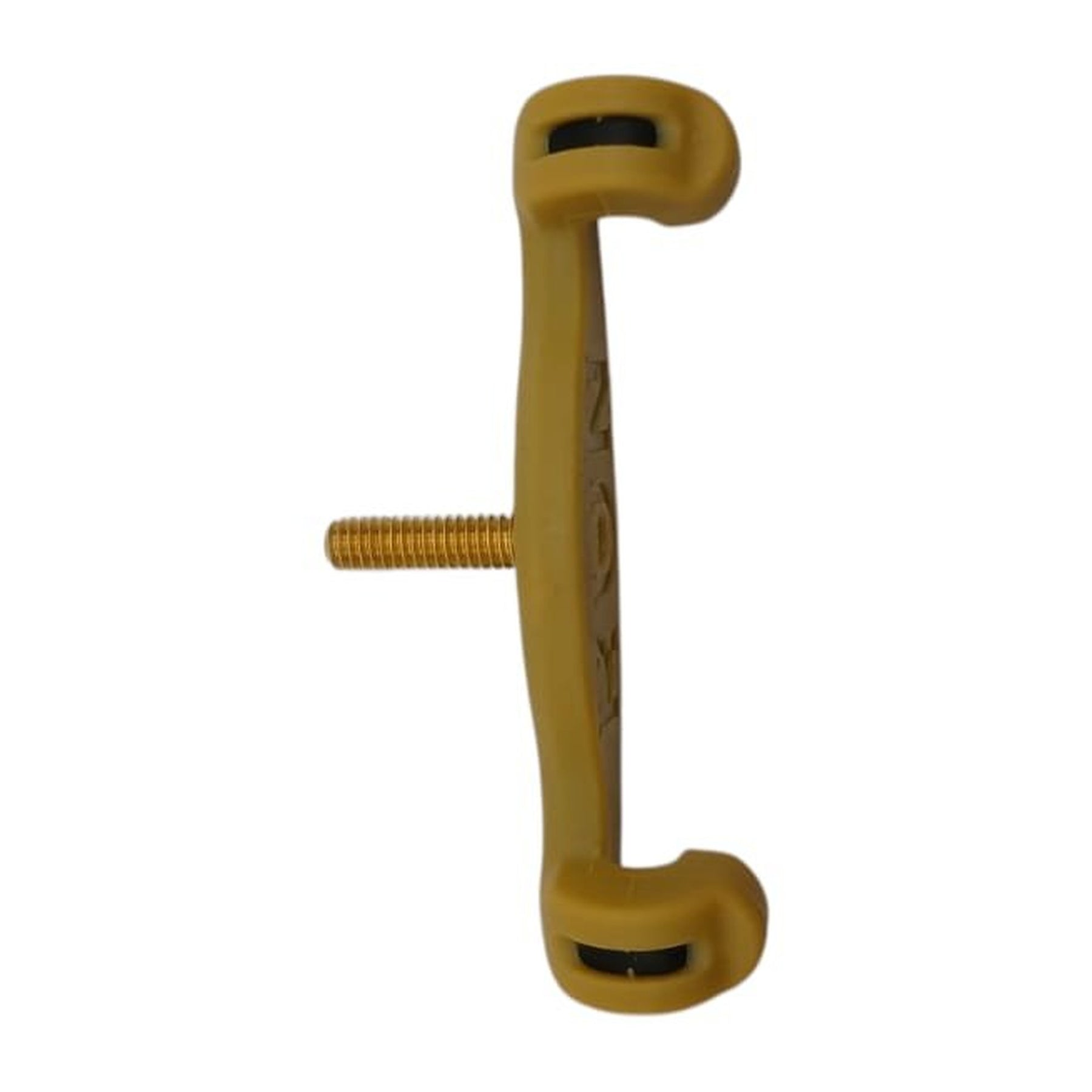

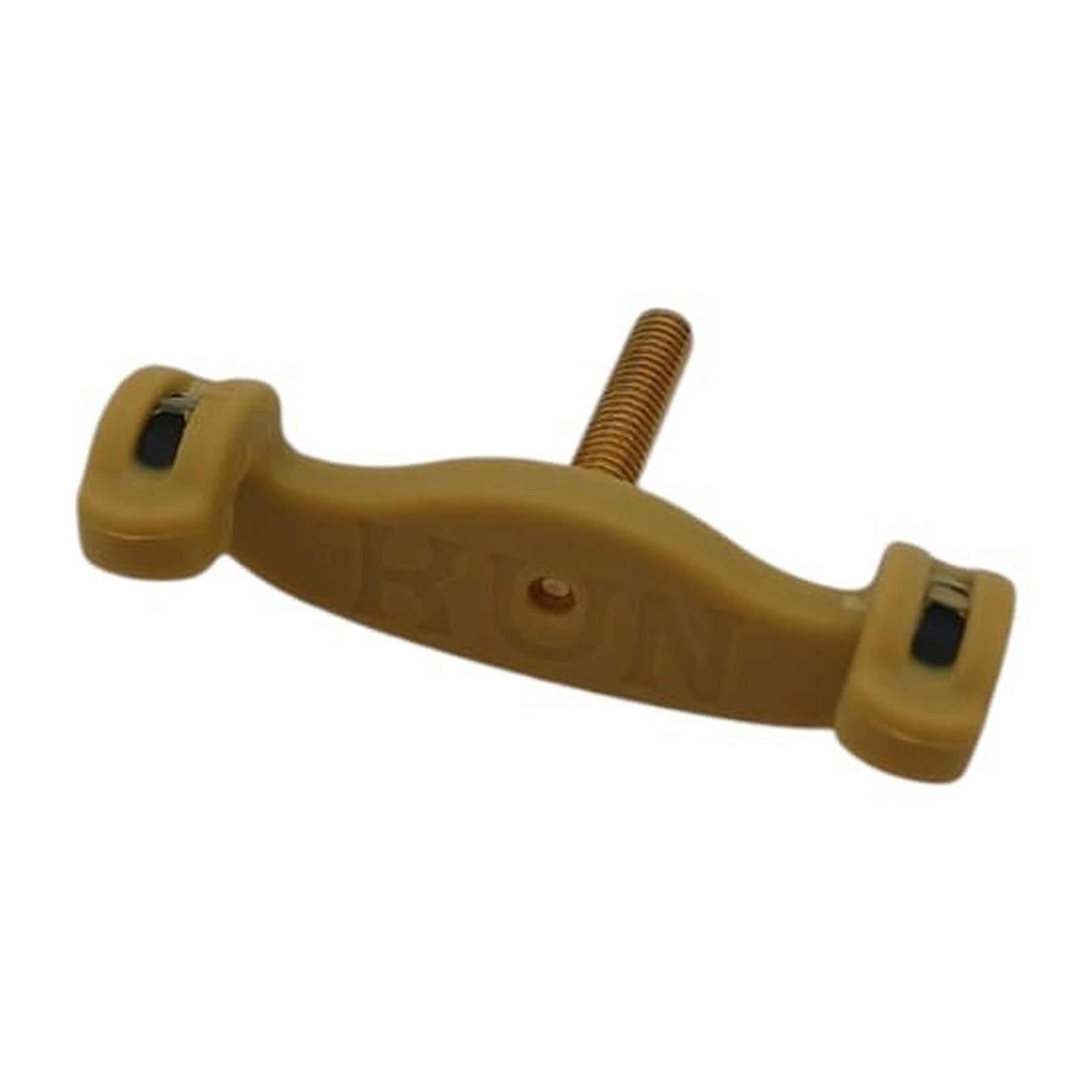

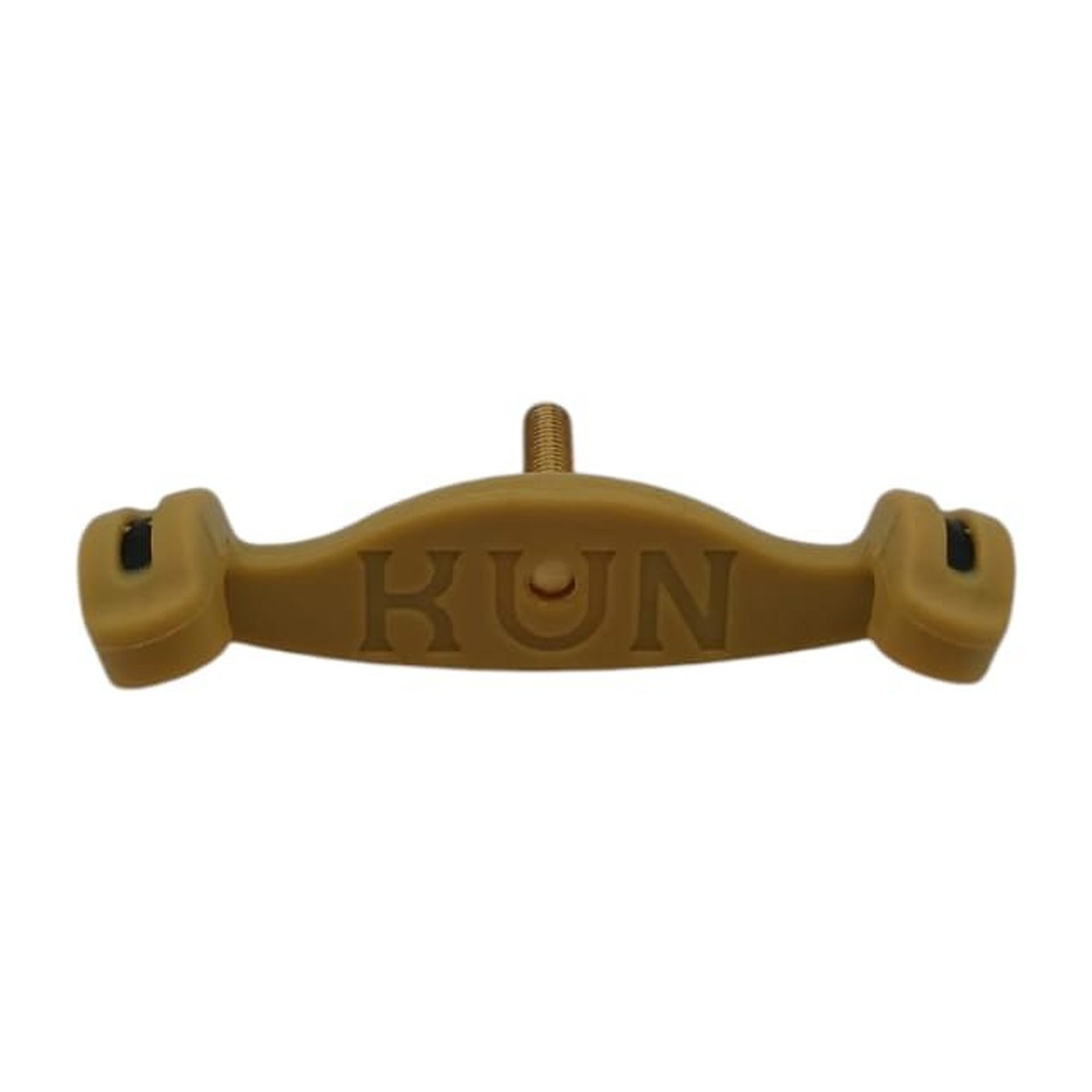

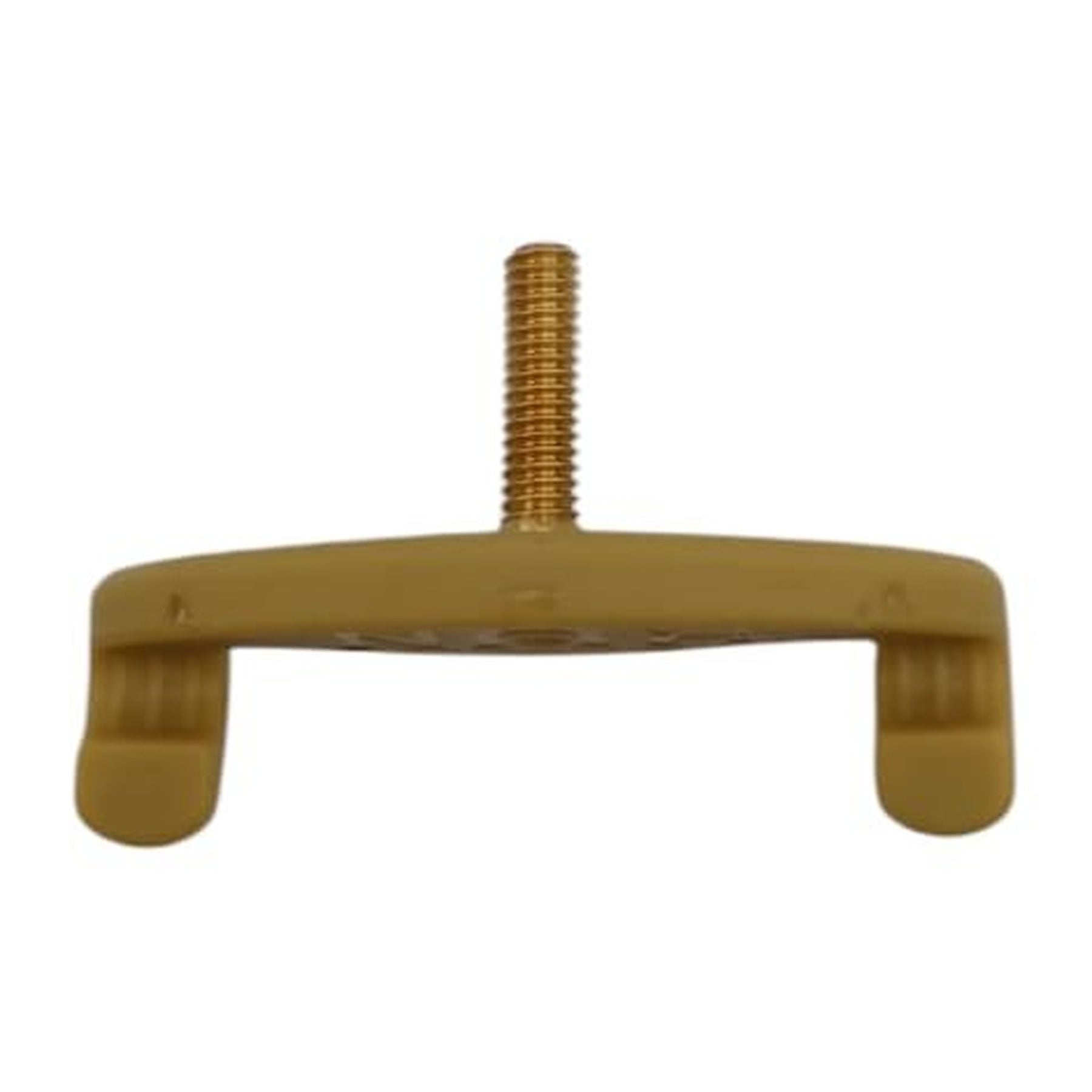

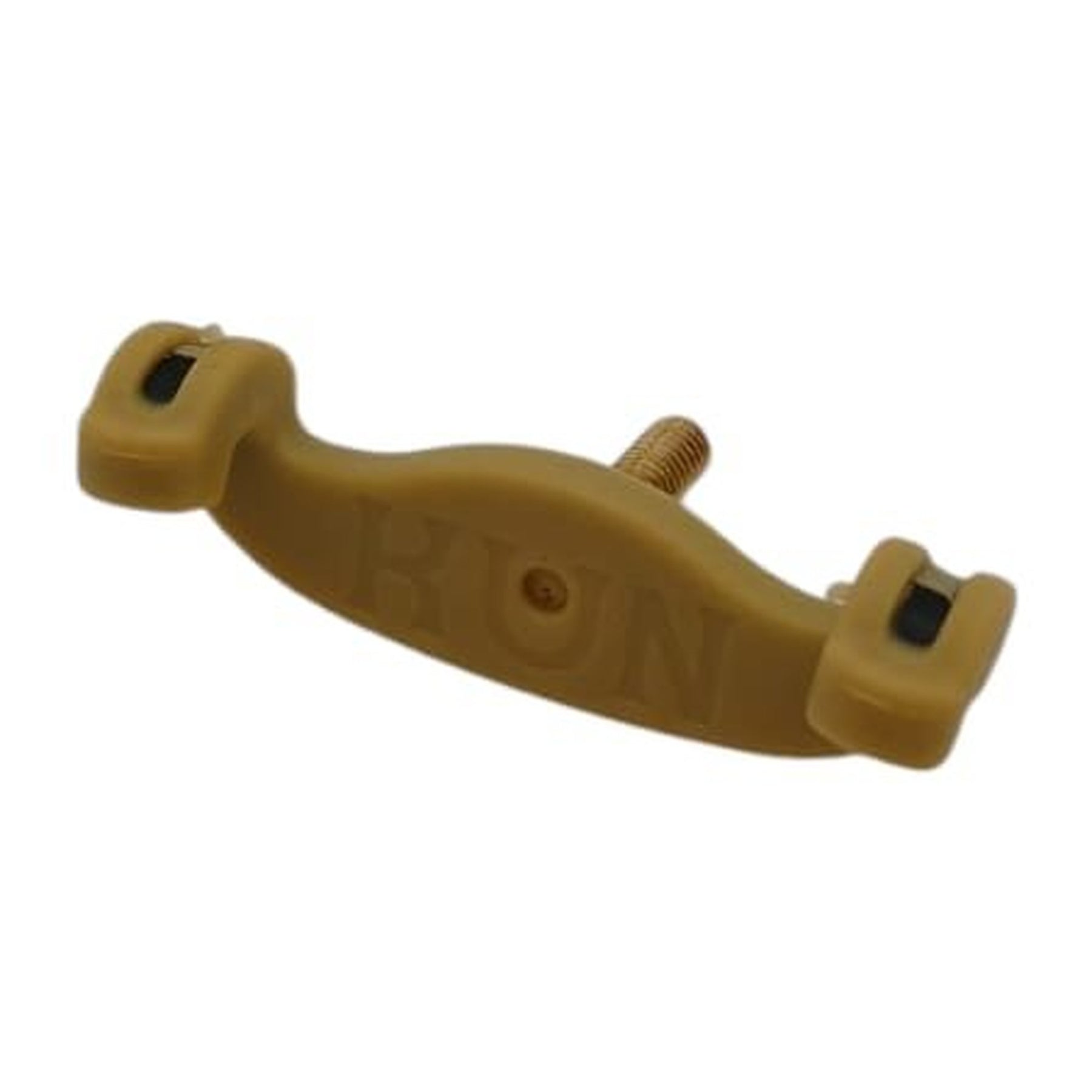

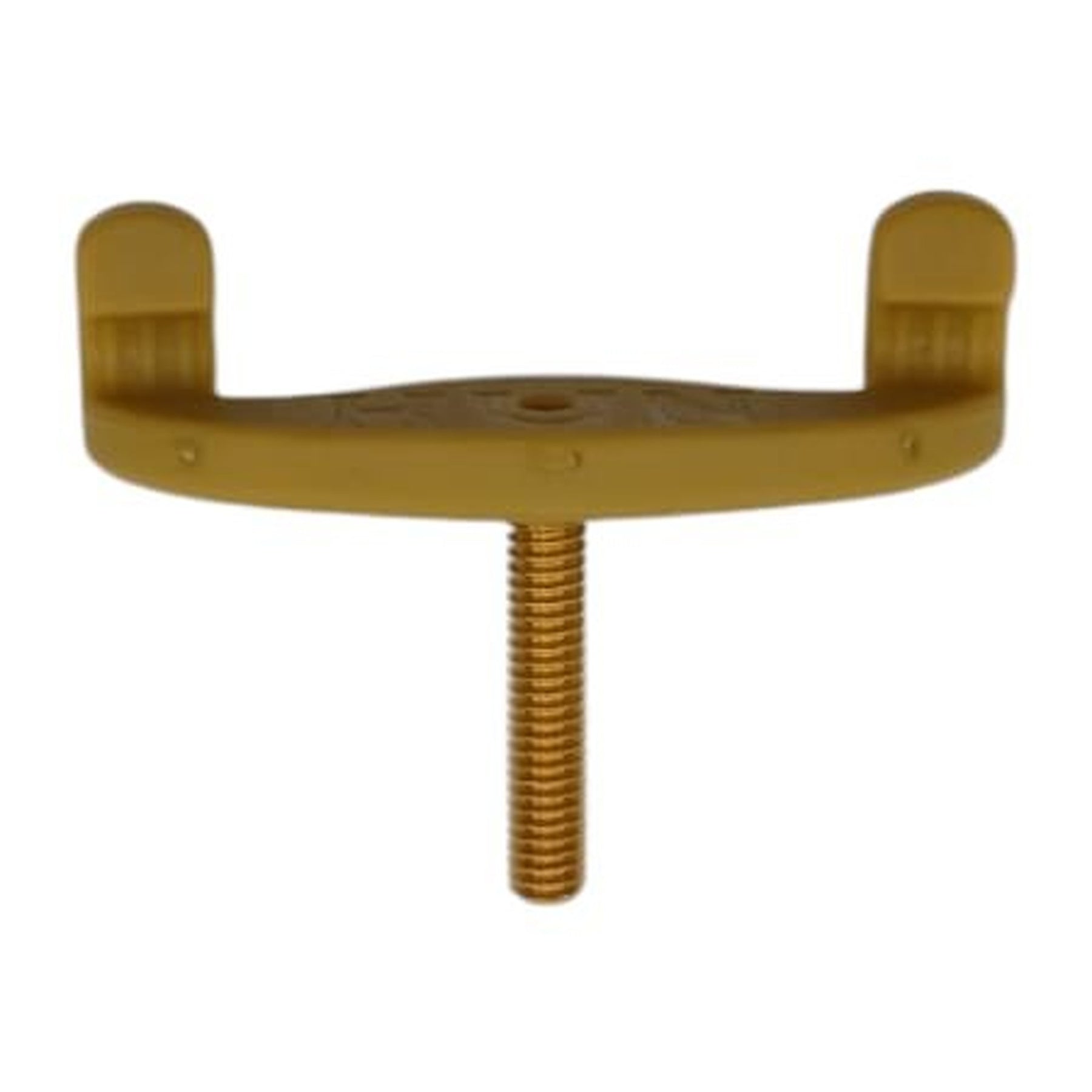

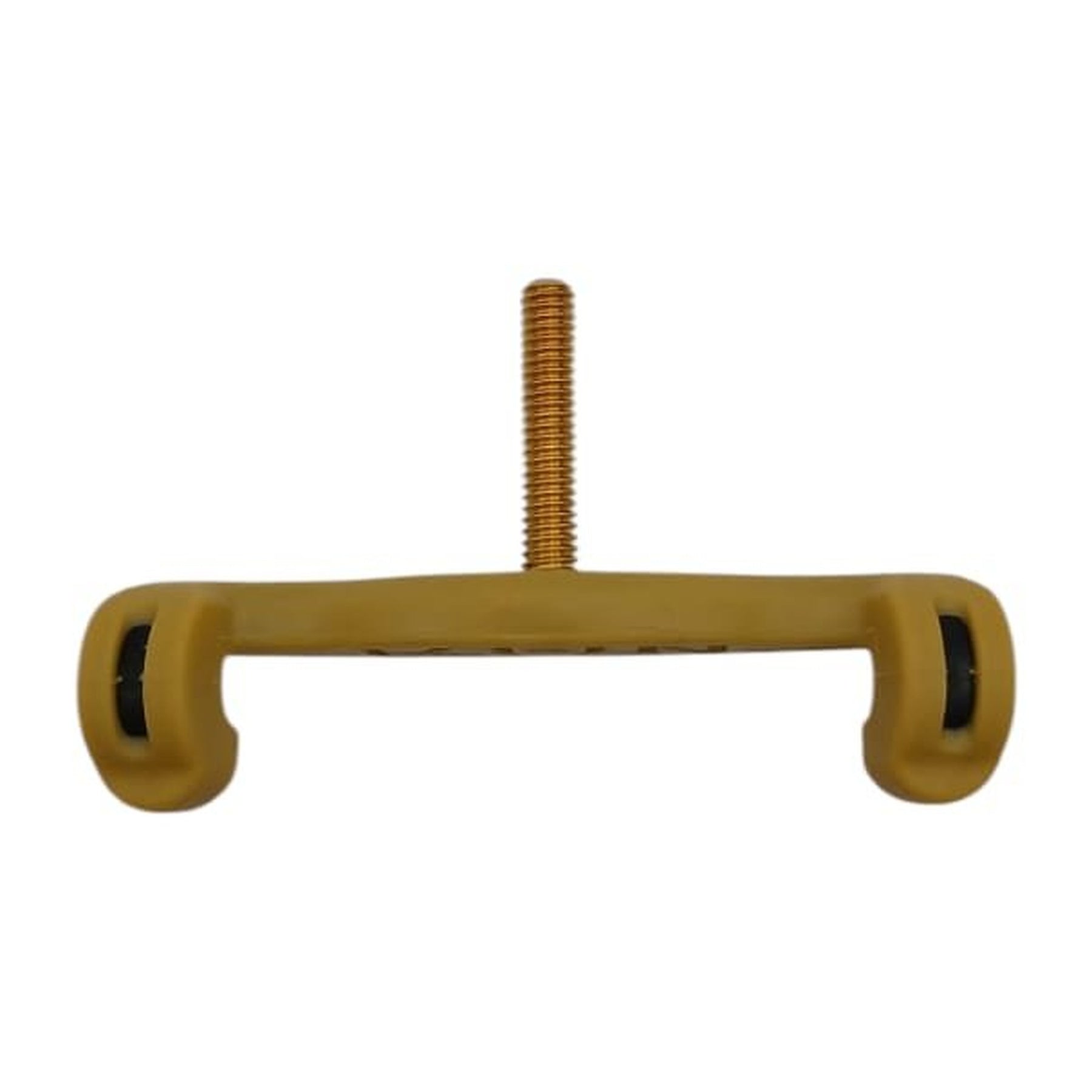

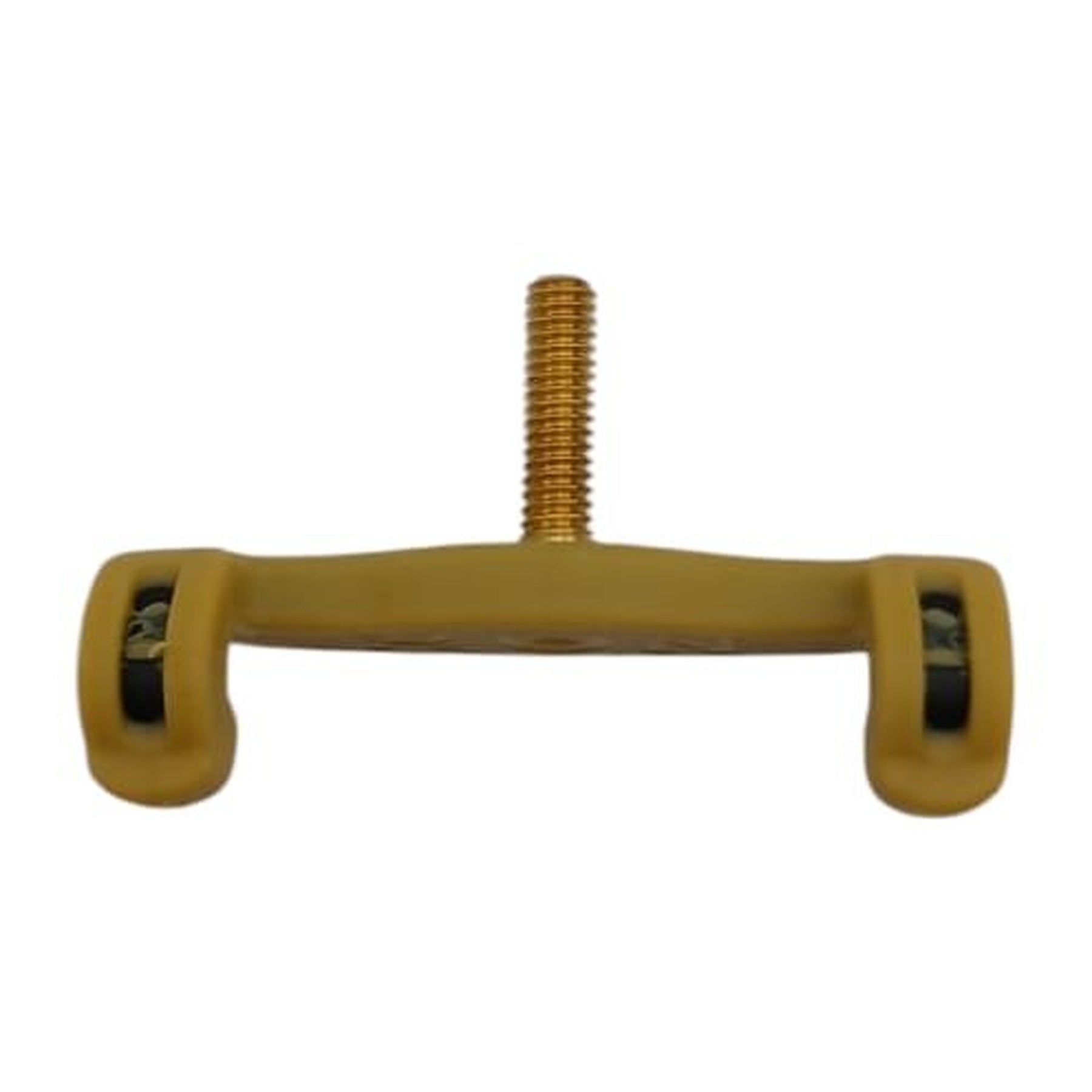

The foot screws come in three lengths: 15 mm short (#311MS), 22 mm long (#311ML) and 33 mm extra long (#311MXL). The extra long screw is always combined with a standard screw on the other side. A short full size foot weighs 6 g, a foot for sizes 1/4 to 1/8 weighs 4 g.
End members are model specific: the Original, Collapsible, Super, Solo and Bravo each have their own parts. Original and Collapsible end members look alike but differ in size and are not interchangeable. Latex tubing #313 belongs to the classic feet with a slip on cover.
Our experience
With every spare part enquiry we first clarify three things: the model, the size and the part concerned. That way the right end member arrives first time.
Frequently asked questions
How long are the Kun foot screws?
They come in 15 mm (short), 22 mm (long) and 33 mm (extra long); the extra long screw is intended for full size and viola.
Is the foam pad of the Kun Original offered as a spare part?
The Original's foam pad is not offered as a separate spare part.
Do Collapsible end members fit an Original?
No, the two families of end members differ in size.
