Technical data
| Line | Hightech Oblong |
| Instrument | Viola |
| Material | Hightech ABS shell |
| Colour | Grey |
| Weight | 3.3 kg |
| Interior dimensions | Total length: 72 cm | Body length: up to 43 cm | Upper width: 19 cm | Lower width: 23 cm |
| Exterior dimensions | 78x29x19 cm |
| BAM reference | PANT5301XL |
| Item number | BAM-PANT5301XLG |
Interior features
- Removable accessory pouch
- 4 bow holders
- Strap for a "Kun" style shoulder rest
Exterior features

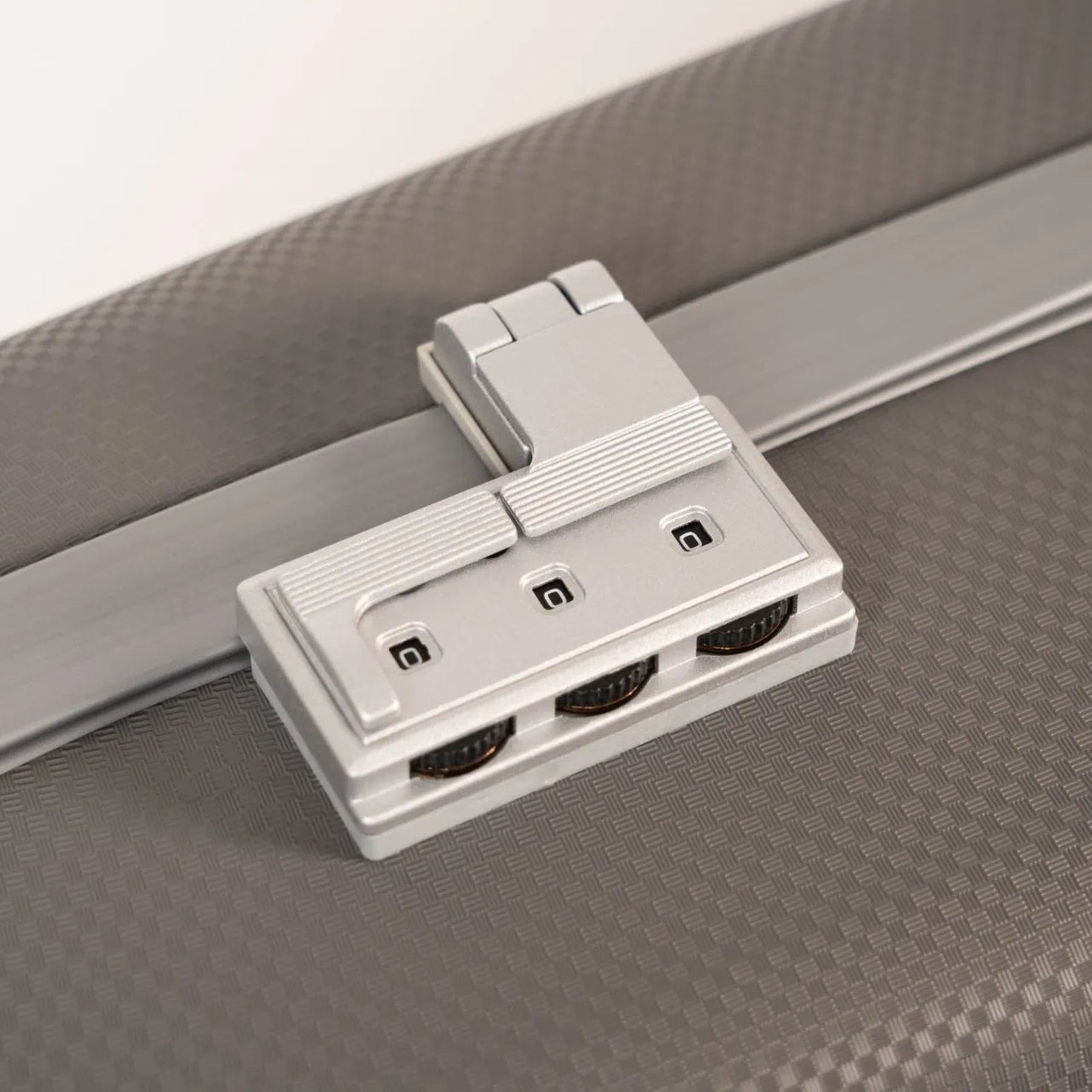

- 2 combination locks

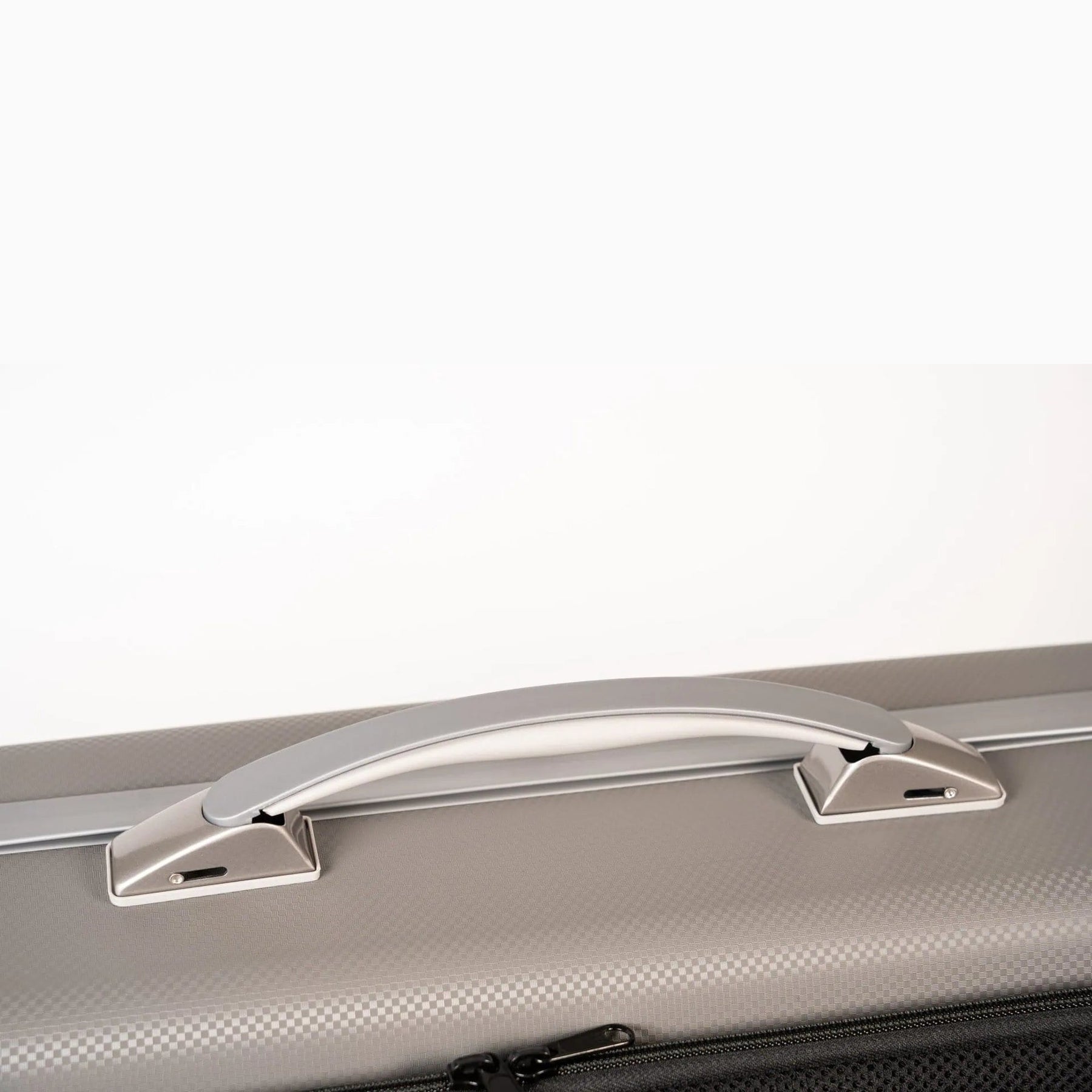

- Very comfortable two material side carrying handle
- Carrying handle for use on public transport
- Airtight seal

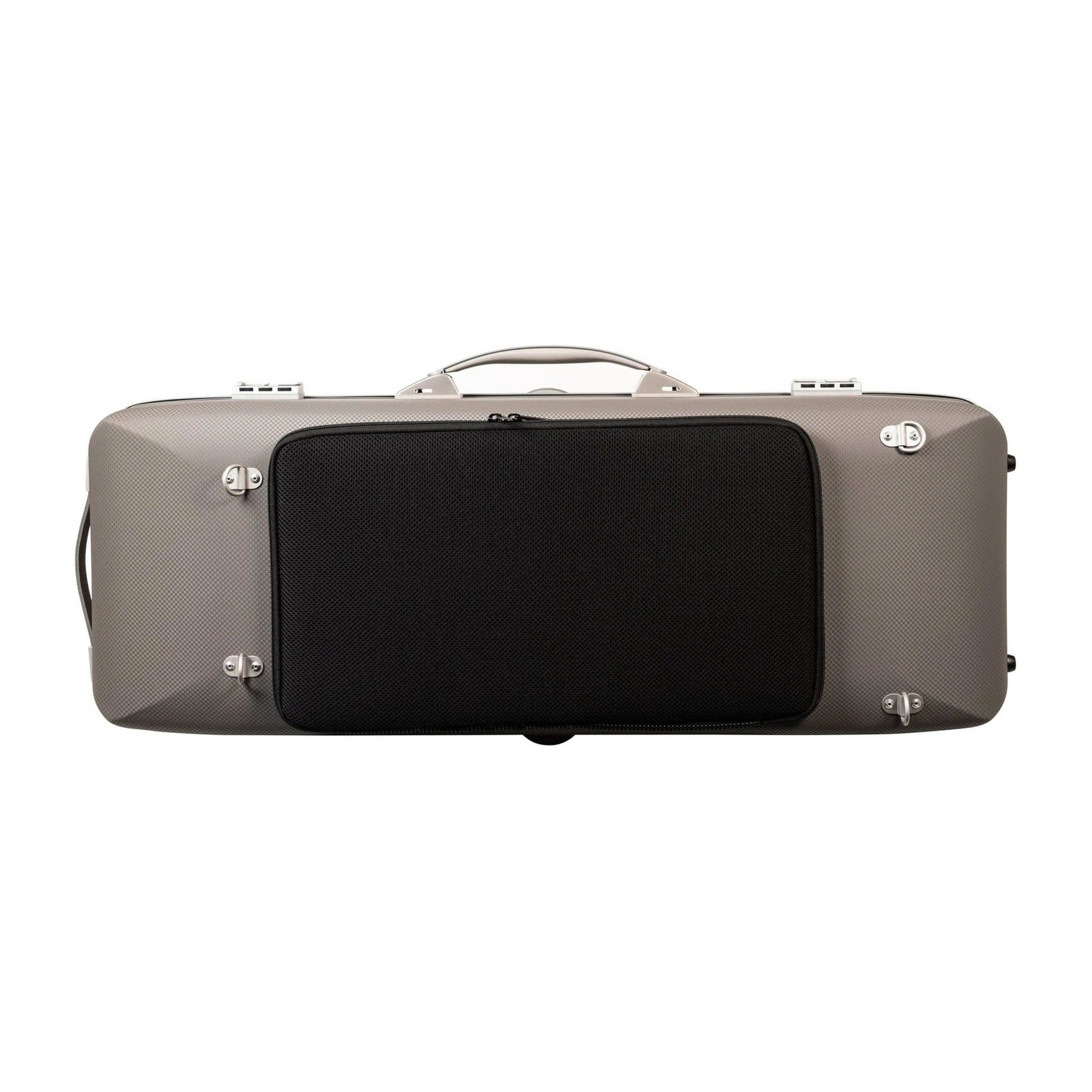

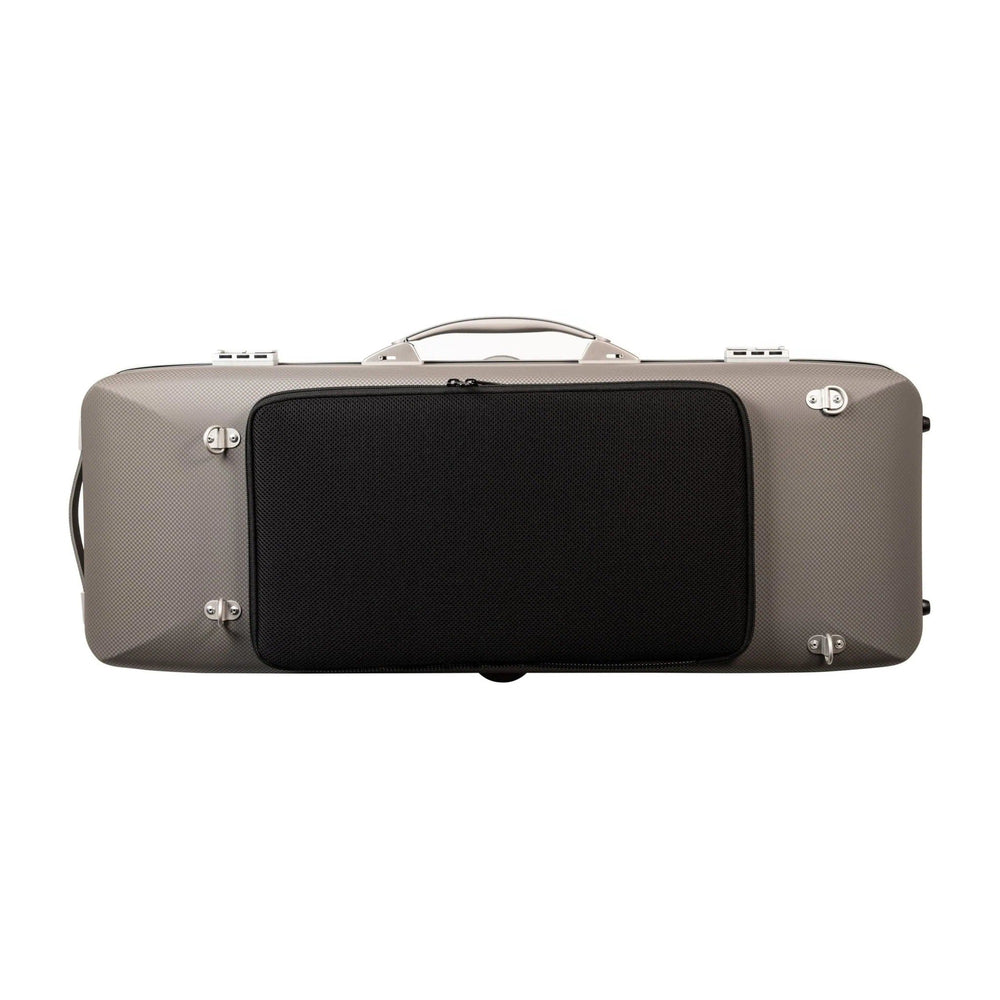

- Integrated back pad / sheet music pocket
Protection and climate
BAM's Hightech shell is built in three layers: ABS on the outside, a foam core of injected polyurethane or, depending on the model, Airex in the middle, and a third layer of PETG or ABS on the inside. BAM thermoforms these shells in France, with part of the production based in Thailand.
The interior is foamed in a single piece and set firmly into the shell; as the instrument is fitted, the padding yields to its shape.
The three-layer shell works as a buffer against swings in temperature and humidity. Open the case after moving into a different climate and the instrument meets the new conditions gradually rather than all at once.
A shady spot suits the shell best: in full sun, for example in a parked car, it can warp or blister.
Dry air makes the maple of the scroll shrink and the pegs give, one to two millimetres of travel being normal; damp air makes them stiff. Below 40 per cent relative humidity, pegs may slip and glue joints may open; below 30 per cent, as dry heated air brings in winter, the instrument is at risk, and in the worst case the top cracks. It is above all sharp changes that do harm, such as constant travel between very different temperatures.
As wood moisture rises, the internal damping (energy lost within the wood) of spruce and maple increases, and an instrument can then sound duller; storage at controlled humidity in the case keeps the damping constant.
The inside and outside dimensions and the weight of this version are listed in the technical data.
Our experience
Our experience from shipping is clear: an instrument travels far more safely in a BAM case than in a cardboard box. Every case we deliver passes through our own quality check first.
We make small scratches on the shell almost invisible with ordinary car polish, and we leave alcohol and white spirit well alone.
In our experience an instrument needs a few weeks to settle after a change of climate, for instance after an overseas journey, and a local luthier then fine-tunes the set-up. For the heating season we recommend a humidifier in the case; in our experience the Stretto lasts around a month and humidifies the case quickly and evenly.
When another model suits you better
If every gram counts, the standard Hightech version of the same form, without the rubberised layer, is the natural choice.
Frequently asked questions
Why does my case weigh a little more than stated?
The stated weight is the net weight without straps. Because the density of the plastic varies slightly, an individual case can weigh around 100 g more.
Can BAM cases be stacked?
No, BAM cases should not be stacked; give each case a place of its own.
Can a cracked shell be repaired?
BAM replaces the complete upper or lower shell in France, as a crack cannot be repaired locally. Smaller damage such as pushed-in feet can be fixed with patches.
Does Panther protect differently from the Hightech case?
The interior is identical. Panther adds a rubberised, scratch- and slip-resistant surface and is minimally heavier as a result.
